About six months ago, to my surprise, I completed the BoxLambda SoC’s gateware. Since then, I’ve explored various OS projects, programming languages, tools, and ideas for BoxLambda’s software environment. It’s time to commit to a software architecture.

Context

Here’s a TLDR, for those who haven’t read all 33 previous posts: BoxLambda is a hardware-software crossover project creating a homebrew, retro-style FPGA-based microcomputer. The goal is to create a sandbox environment for experimenting with software and FPGA gateware.

The physical setup looks like this:

The physical setup.

BoxLambda’s current features:

Target FPGA: Arty-A7-100T.
Ibex RISC-V core with machine timer and hardware interrupt support.
Harvard architecture-based interconnect.
Low-latency register and memory access across the SoC.
Predictable instruction cycle counts.
DFX Partial FPGA Reconfiguration support.
DDR3 external memory access through the Litex memory controller.
OpenOCD-based debug access on FPGA and Verilator.
VERA-based VGA graphics: 2 layers, tile or bitmap mode, 2 banks of 64 sprites, 128KB Video RAM, 256 color palette.
Dual YM2149 PSG Audio.
SD Card Controller and FatFs File System.
24-pin GPIO, UART, SPI Flash Controller, I2C Controller.
Real-time Clock and Calendar (RTCC) support.
USB HID Keyboard and Mouse support.
Picolibc-based standard C environment.
Test application suite covering all SoC components, running on both FPGA and Verilator.
A Linux CMake and Bender-based Software and Gateware build system.

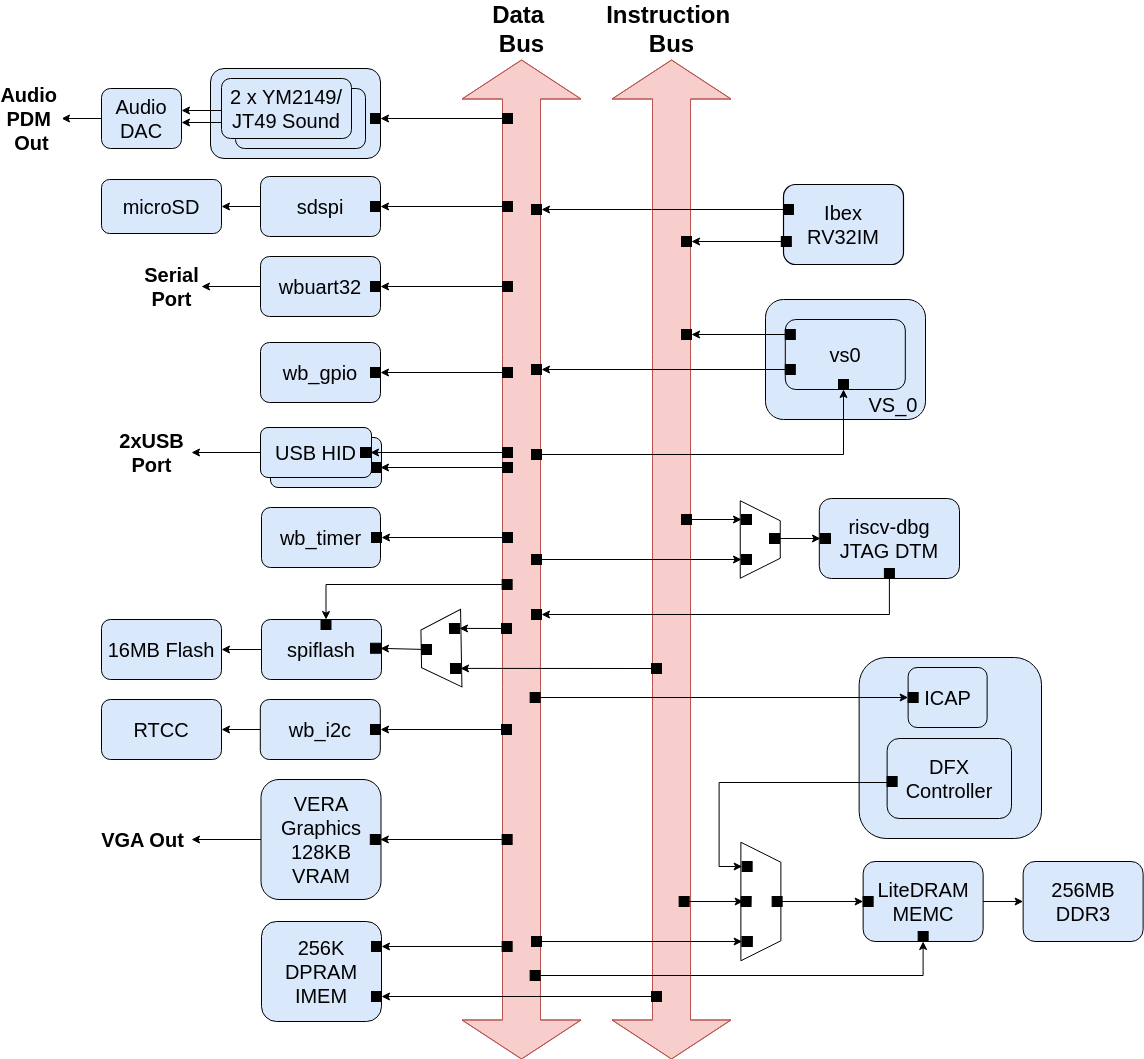

This is the gateware’s block diagram:

BoxLambda Block Diagram.

Project documentation: https://boxlambda.readthedocs.io/en/latest/

The Repo: https://github.com/epsilon537/boxlambda

OS Requirements

Here are the original requirements relevant for the software side of BoxLambda (see first post):

Simplicity: It must be easy to jump in and do something: create, hack, tinker.
Grokability: It must be doable for a single person to develop a good understanding of the entire system, software and hardware.
Deterministic Behavior: By design, it must be clear how long an operation an operation is going to take, be it one instruction or a complete function.
Single User/Single Tasking OS booting to a console shell.

(There are some additional, practical requirements for peripherals, sound, and graphics. Those are less relevant for the current discussion.)

That was three years ago. Meanwhile, I’ve had time to think about them and my expectations for the operating system. I would like to introduce the following additional requirements:

Self-Hosting: The system must be self-contained and self-hosted, i.e. not depend on a host PC for software development.
System Programming: The programmer must have full access to the system, i.e. not be restricted to a sandbox/VM environment.
REPL: The programming environment must support interactive programming using a REPL.
Automated Testing: All features must support automatic testing.

Elaborating on the above:

The OS must support assembly-language level programming. Think of programming an Interrupt Service Routine or bit-banging a timing-critical bus, for example.
I don’t want to do all system-level programming in assembly language. I’m going to need a Compiled Language. The compiler must be self-hosted.
The OS must include low-level tools such as a disassembler, memory editor, and debugging facilities.
The OS must support a text editor.

Also worth noting:

The Automatic Testing requirement may result in gateware changes supporting testability, e.g. a VGA capture mechanism.
A purely interpreted software environment does not meet the requirements (it is not suitable for System Programming and does not easily provide Deterministic Behavior).
Even though the system must not depend on a host PC, a USB connection to a PC will still be useful for:
- File transfers to or from a PC.
- JTAG debugging of system software issues.
- Flashing new firmware and bitstream images.
I’m going to use open-source third-party components wherever I see fit, just like I did on the Gateware side of the project. In practice, this means that parts of the OS will consist of cross-compiled C/C++ code. An FFI (Foreign Function Interface) between the cross-compiled code and the self-hosted code will be needed.

Forth

Forth enthusiasts already know: These requirements have Forth written all over them.

To be honest, when I started this project, I did not know about Forth, other than that is was a niche, stack-based language. When I finally learned about it while looking for ideas for this project, the Forth bug bit me. Forth is a unique, minimalistic, extremely powerful programming language, perfect for running on constrained systems. It features a REPL, an interpreter doing double duty as a compiler (a competer? interpiler?), an assembler, editor, and metaprogramming capabilities you wouldn’t believe.

To get a sense of what a unique language Forth is, check out this article. It’s long but quite entertaining:

Forth just begs to be explored on an experimental homebrew computer such as BoxLambda. Learning Forth is not a walk in the park. It requires a different way of thinking. At my current level, an average line of low-level Forth is a puzzle. It takes as long to unpack as a regular expression of the same length. Here’s an example:

: IF IMMEDIATE ' 0BRANCH , HERE @ 0 , ;

: THEN IMMEDIATE DUP HERE @ SWAP - SWAP ! ;

Two lines of code, defining the equivalent of the if (...) {...} control structure in C. How many lines of code would a C compiler require to implement if (...) {...}? Needless to say, there’s a lot to unpack in those two lines of Forth code. But I enjoy the challenge! It feels a bit like diving into assembly code on the Commodore 64 for the first time.

Explorations

I spent several ~~weeks~~ months ~~messing around with~~ evaluating a bunch of Forths and other projects that might be of interest:

Project Oberon: A delightfully insane system featuring desktop UI, programming language, and compiler with a very modest footprint. Full of interesting alternative OS and UI ideas.
DuskOS: an insanely smart Forth-based OS including a C compiler and an Oberon port. I could just port Dusk to BoxLambda and say that I’m done. It ticks all boxes on my requirements list.
ZeptoForth: a modern, feature-rich and well-documented Forth for ARM-based CPUs. I considered porting it to RISC-V.
Mecrisp Quintus Forth and Mecrisp Cube: A well-written Forth for RISC-V based systems. An excellent code base to really grok Forth and easy to port to BoxLambda.
TCC Tiny C Compiler: a C compiler that can conceivably be ported to a constrained platform such as BoxLambda.
Lua and eLua. Lua is a lightweight, byte-code compiled, embeddable scripting language, easy to port, and with a well-designed C-FFI. I considered Lua as a higher-level scripting language to complement Forth.
uLisp: A well-documented and easy to port implementation of Lisp for MCUs. ULisp supports RISC-V assembly language functions and has an (experimental?) Lisp compiler. Could be an interesting complement to Forth.
viless: A bare-metal version of vi, a candidate text editor for BoxLambda. Kilo is another option.

DuskOS is an amazing project. It would be great to be part of that story and to port that system to BoxLambda. A few things are holding me back, however. The OS is very advanced and not easy to master. It feels a bit like jumping on an 800cc bike while I’m not used to the 125cc starter bike yet. Also, in Dusk, most interesting decisions have already been made. Dusk OS is more or less complete. I’m looking for an OS development project, not just an OS porting project.

Maybe one day I’ll port Dusk, but right now, I prefer to go my own way. It would be a bit strange to spend all this time carefully putting together this computer and then just slap in one fell swoop an entire OS on top of it, and be done with it.

I’ll be using Matthias Koch’s Mecrisp Quintus Forth as a starting point. Mecrisp leans a bit more towards traditional Forth, is easier to pick up, and leaves more headroom for growing into a custom-designed OS.

The OS Architecture

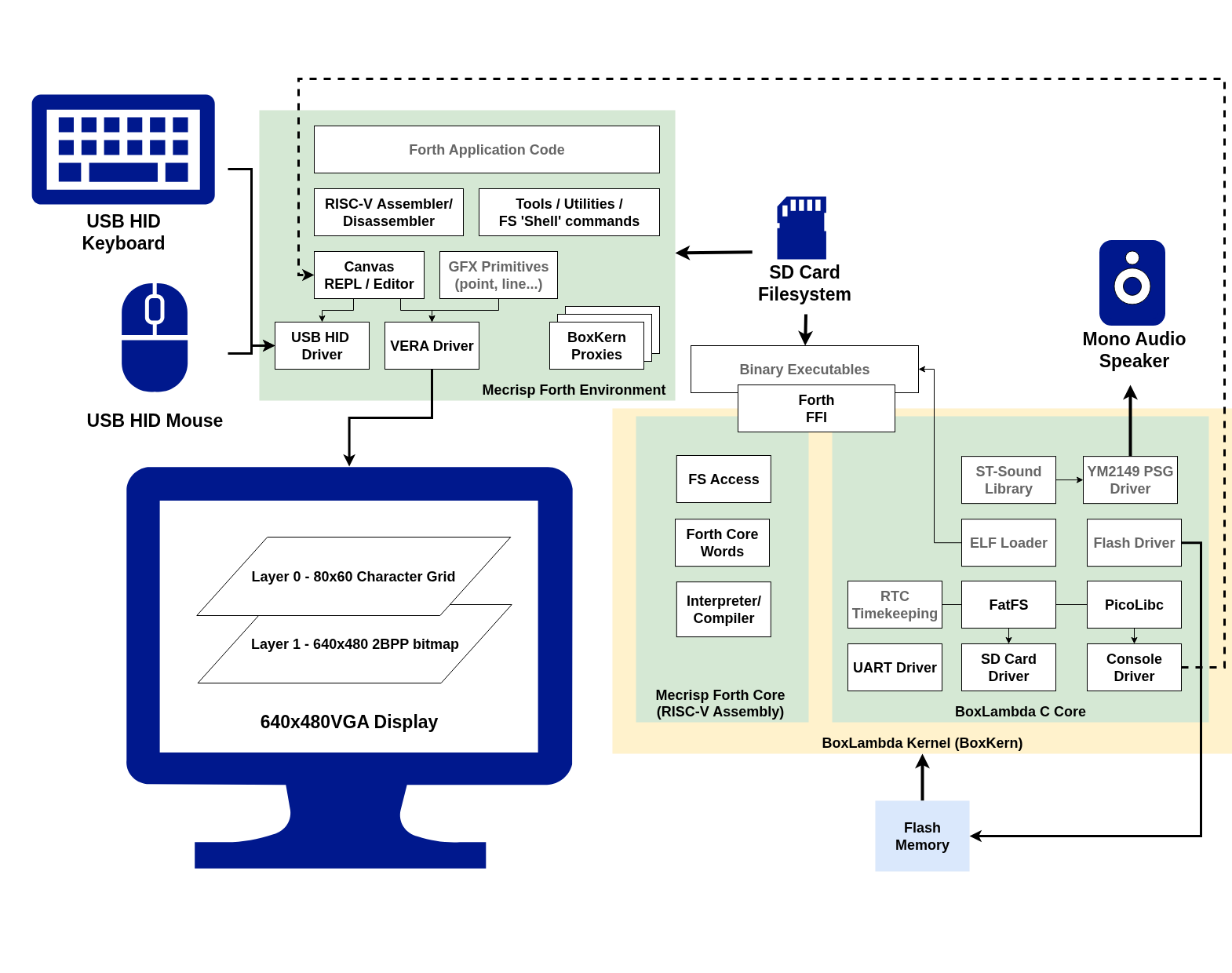

Here’s a block diagram of the OS architecture I’m proposing:

BoxLambda OS Architecture Block Diagram.

The two main subsystems are the BoxLambda Kernel (BoxKern) and the Mecrisp Forth Environment.

The BoxKern image is stored in flash memory. The Bootloader loads the kernel into EMEM, then transfers control to it. The kernel’s CRT0 startup code then further unpacks specific sections into EMEM and IMEM. (See here for a more detailed description of the boot sequence).

The Mercrisp Forth Environment lives as Forth source code on the SD card filesystem.

The BoxKern

The BoxLambda Kernel is subdivided into two cores:

The Mecrisp Forth Core, written in RISC-V assembly language.
The C Core containing C/C++ drivers, libraries and C runtime.

The BoxKern is mostly about leveraging existing non-Forth code. Most of the BoxKern components already exist in BoxLambda’s code base, the exceptions being:

The Foreign Function Interface (FFI): This is the mechanism used to call Forth from C code and C from Forth code. BoxKern drivers and libraries export their functionality to the Forth environments through the FFI.
The Console Driver: In the current BoxLambda code base, Picolibc’s stdin and stdout are associated with the serial port. This I/O method has to be replaced by a Console Driver which forwards output to and takes input from the Forth-side REPL.

The Mecrisp Forth Core

The Mecrisp Forth Core is written in RISC-V assembly language. It contains Forth start-up code and the definitions of key Forth words, such as interpreter/compiler words, that make up the core of the Forth system. After booting the Mecrisp Forth Core, you have a small, operational Forth system.

I’m adding Filesystem Access (FS Access) words to the set of original Mecrisp core words so that after booting the core, the remaining Forth words can be loaded as Forth .fs source code files from the SD card filesystem. The filesystem access words are based on those found in Peter Schmid’s Mecrisp Cube project.

The Mecrisp Forth Environment

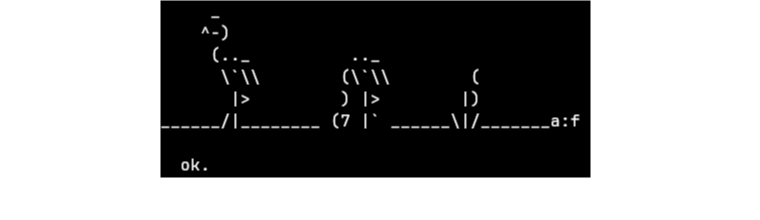

Mecrisp Forth’s Welcome message - ASCII art from Adreas Freise.

Most new code will be written in Forth or in assembly language in the Forth environment. Not everything is in the Forth environment is new, still- to-be-developed software, however. Some modules, such as the RISC-V assembler and disassembler, are part of the Mecrisp Forth Quintus distribution.

The Canvas REPL / Editor

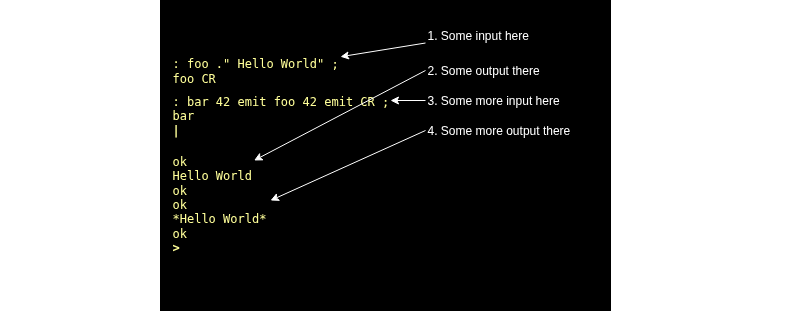

Instead of a line-oriented prompt, I would like to provide a REPL that allows you to move freely all over the screen, as is the case on the Commodore 64, for instance. The Canvas REPL can perform double duty as a text editor.

The Canvas REPL.

Note that the REPL takes its input from the USB HID keyboards and sends it output to the attached VGA display. There is no serial port terminal.

The BoxKern Proxies

The BoxKern Proxies are Forth-side proxies of BoxKern drivers and libraries. The proxies access the BoxKern drivers/libs through the FFI.

The Extras

The greyed-out parts in the block diagram are components that are not essential to create a working system. These components are likely added later (some possibly never). This is just a crude binary partitioning of what really is an iterative spiraling approach. I start from something small but working (e.g., the Mecrisp Forth core running in a serial port terminal) and keep growing it. The greyed-out parts are among the parts to be added last.

Binary Executables and ELF Loader

Two such extra components are the Binary Executables and ELF Loader. I would like to have a way to extend the non-Forth part of the system without making the extension part of the kernel monolith. Lua or uLisp could be added to the system in such a way, for example. These executables can communicate with the rest of the system through the FFI.

The Display

The 640x480 display is organized into two layers. The top layer is an 80x60 character grid displaying the Canvas REPL. The bottom layer is a 2-bit-per-pixel 640x480 bitmap. The GFX Primitives module will render to this layer by default.

Choosing is Losing

I spent an inordinate amount of time evaluating projects and programming languages for BoxLambda. It’s just too much fun. I have prototypes on BoxLambda of uLisp, Lua, Mecrisp Forth, and vi. I wrote a RISC-V disassembler for DuskOS, and I’ve been diving into Project Oberon, ELF loaders, and small-footprint C compilers.

The hard part is deciding it’s time to stop scouting and commit to an idea. An opportunity to define the OS for a homebrew computer doesn’t come along every day. You never know if you’ve overlooked some project or concept that’s even cooler and more perfect for your own project than what you have already discovered.

What would you choose?
