I spent a couple of days bringing up an SD-Card Controller and a file system. It was a straightforward exercise thanks to Dan Gisselquist’s SDSPI repository.

Recap

This is a summary of the current state of affairs for BoxLambda. We have:

  • An Ibex RISC-V core, Wishbone shared bus, timer, two GPIO ports, UART core, and internal memory.
  • DDR3 external memory access through the Litex Memory Controller.
  • OpenOCD-based Debug Access, both on FPGA and Verilator.
  • VERA-based VGA graphics: 2 layers tile or bitmap mode, 2 banks of 64 sprites, 128KB Video RAM, 256 color palette.
  • Test builds running on Arty-A7-35T, Arty-A7-100T, and Verilator.
  • A Picolibc-based standard C environment for software running on the Ibex RISC-V core.
  • A Linux CMake and Bender-based RTL build system.
  • Automated testing on Verilator.

The MicroSD Card Interface and SPI Mode

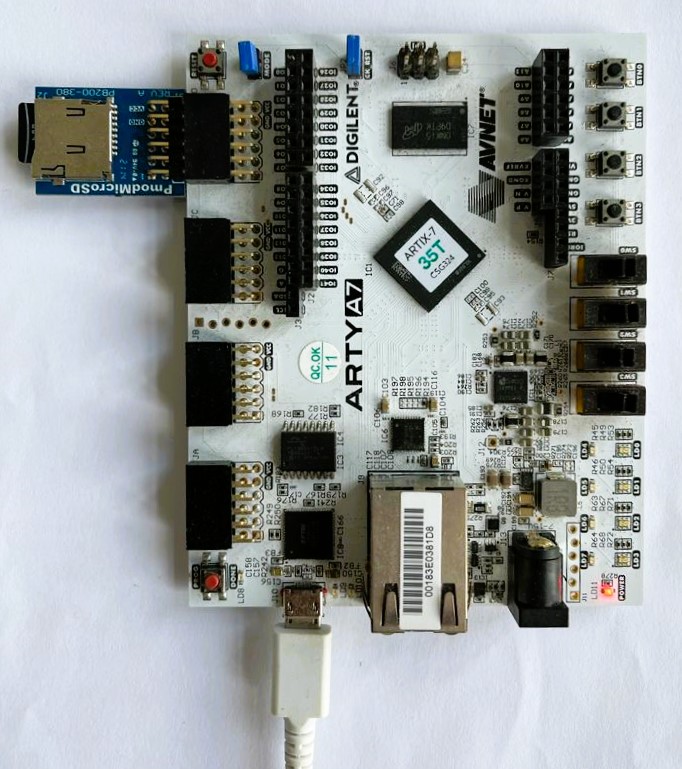

Arty A7 with MicroSD PMOD in JD port.

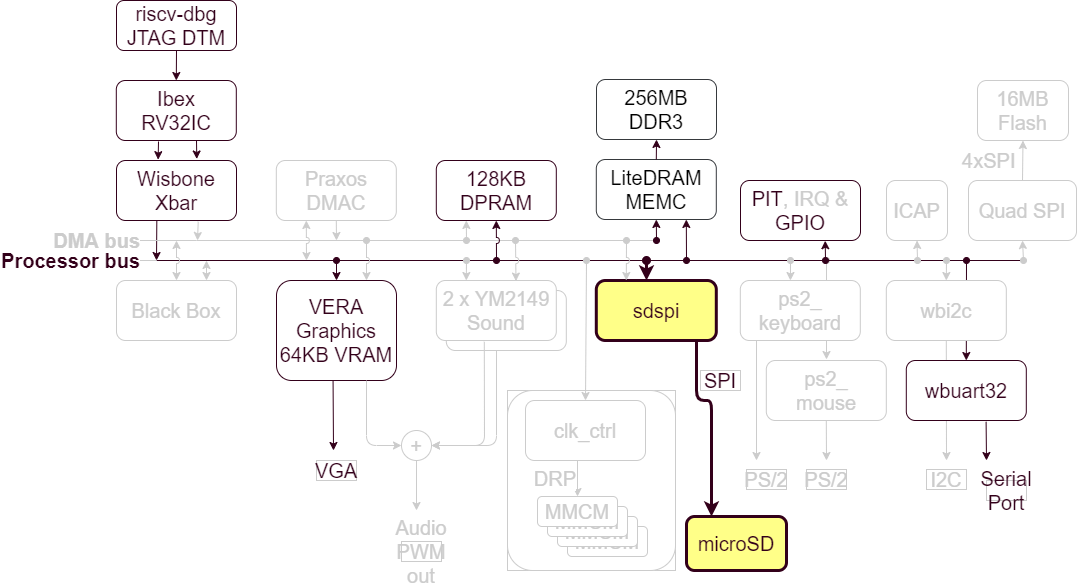

SDSPI in the BoxLambda Architecture.

On the Arty, I’ll be using Digilent’s MicroSD PMOD plugged into the JD Connector.

The MicroSD card can operate in two modes: SD card mode and SPI mode. In SPI mode, a 1-bit SPI bus is used as the interface between the SD-Card Controller (Master) and the SD card (Slave). SPI mode is selected by pulling the Chip Select line low. The SDSPI core currently only supports SPI mode.

The SPI bus speed is software-configurable through a clock divider setting in the SDSPI core. The minimum value of this divider is 4. Given BoxLambda’s 50MHz system clock rate, this limits the bus speed to 12.5MHz.

Other than the SPI signals (SCK, MISO, MOSI, CS), the MicroSD card interface has two DAT data lines that we won’t be using and a CD Card Detect signal, which appears to be active-low, even though the MicroSD PMOD Reference Manual didn’t say so.

The SDSPI Repo

The SDSPI repository makes life easy for an integrator. The repository contains:

  • A SPI-based SD-Card Controller core with a Wishbone interface.
  • A C++ test bench with SDSPISIM co-simulator.
  • Documentation.
  • Low-level driver functions to hook into the FatFs file system implementation.

The SDSPI Core

SDSPI in the BoxLambda Architecture.

SDSPI in the BoxLambda Architecture.

I created a Test SoC containing all of the previously enabled BoxLambda components as well as the SDSPI core. See the Block Diagram Above. The core is instantiated in the sdspi_test_soc.sv top-level module as follows:

sdspi #(.OPT_LITTLE_ENDIAN(1'b1)) sdspi_inst (
		.i_clk(sys_clk), .i_sd_reset(ndmreset | (~sys_rst_n)),
		// Wishbone interface
		.i_wb_cyc(wbs[SDSPI_S].cyc), .i_wb_stb(wbs[SDSPI_S].stb), .i_wb_we(wbs[SDSPI_S].we),
		.i_wb_addr(wbs[SDSPI_S].adr[3:2]),
		.i_wb_data(wbs[SDSPI_S].dat_m),
		.i_wb_sel(wbs[SDSPI_S].sel),
		.o_wb_stall(wbs[SDSPI_S].stall),
		.o_wb_ack(wbs[SDSPI_S].ack),
		.o_wb_data(wbs[SDSPI_S].dat_s),
		// SDCard interface
		.o_cs_n(sdspi_cs_n), .o_sck(sdspi_sck), .o_mosi(sdspi_mosi),
		.i_miso(sdspi_miso), .i_card_detect(~sdspi_card_detect_n),
		// Interrupt
		.o_int(),
		// .. and whether or not we can use the SPI port
		.i_bus_grant(1'b1),
		// And some wires for debugging it all
		.o_debug()
	);

The Wishbone signals plug straight into the test SoC’s system bus. The SD Card interface signals go straight to the top-level ports. I currently don’t have interrupts hooked up.

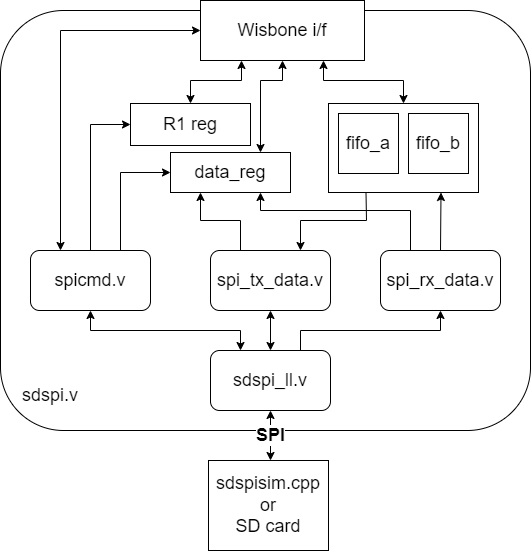

SDSPI Block Diagram.

SDSPI Simplified Block Diagram.

I’ve been studying the core’s internals a bit and created the above, simplified block diagram. I won’t be going into the details here, however. Dan Gisselquist did a great job documenting the core in the spec and the source code.

SDSPISIM

On the Verilator test bench, the MicroSD card PMOD is replaced with an SDSPISIM co-simulator. SDSPISIM was easy to plug into BoxLambda’s test bench. The interface is similar to the UARTSIM co-simulator, already in use in the test bench, and also provided by Dan Gisselquist.

Here’re the hooks to both co-simulators in the test bench’s tick() function. The tick() function is the heart of the test bench advancing the simulation by one clock cycle:

  //Feed SDSPI co-sim
  top->sdspi_miso = (*sdspi)(top->sdspi_cs_n, top->sdspi_sck, top->sdspi_mosi);

  //Feed our model's uart_tx signal and baud rate to the UART co-simulator.
  //and feed the UART co-simulator output to our model
  top->uart_rx = (*uart)(top->uart_tx, top->rootp->sim_main__DOT__dut__DOT__wb_uart__DOT__wbuart__DOT__uart_setup);

For the complete test bench code, see sim_main.cpp in the sdspi_test project.

SDSPISIM reads from and writes to an sdcard.img file. That file can be mounted in Linux, so you can FAT format it and put files on it for the simulated system to use, or vice versa. See the FatFS Test on Verilator section below for an example.

SDSPI Operation

The SDSPI core’s register interface, the initialization sequence, and the overall operation of the core are well-documented in the SDSPI core spec.

Sdtest.c demonstrates and tests the SDSPI core operation. This is a modified version of Dan’s sdtest.c in the Zbasic repo. The Zbasic repo integrates the SDSPI core and other peripherals developed by Dan into a ZipCPU Platform.

Sdtest.c runs on the RISCV processor that’s part of the SDSPI Test SoC build outlined above.

See instructions below for building and running the SDSPI test project.

FatFs

FatFs is a lightweight software library for small systems that implements FAT file system support. It’s written in ANSI C89 and has no dependencies other than a minimal C environment. It’ll compile out of the box in virtually any environment.

FatFs itself does not provide the device/media-specific Storage Device Controls*. Those have to come from the device implementer. Conveniently, the SDSPI repo does provide these functions for FatFs. Three files are provided: sdcard.c, sdcard.h, and diskio.c.

Note: These three files have a dependency on a board.h header file which is not part of the SDSPI repo. An example board.h can again be found in the Zbasic repo. I checked the BoxLambda version into the boxlambda branch of the BoxLambda fork of the SDSPI repo.

FatFs Media Access Interface.

FatFs Media Access Interface.

Endianness

Bringing up the file system should just be a matter of compiling the FatFs sources together with the Storage Device Control sources provided by the SDSPI repo. Here, I hit a snag, however. The first call to FatFs, f_mount() returned a FR_NO_FILESYSTEM error. At first, I thought there was something wrong with the formatting of my sdcard.img file, but that wasn’t the case. Luckily, the SDSPI code contains plenty of debug logic. Once the debug code was enabled, the problem was easy to see: When reading data from the SD card image, groups of four bytes were getting swapped around. In other words, there was an endianness issue.

There is some word-to-byte-array casting going on in sdcard.c which assumed a big-endian system. This is because SDSPI is part of the ZipCPU ecosystem, which is a big-endian platform. BoxLambda is using a little-endian RISCV CPU, however. I mentioned the issue to Dan and he provided a fix by adding a parameter that allows you to instantiate the core as a little-endian core:

	sdspi #(.OPT_LITTLE_ENDIAN(1'b1)) sdspi_inst (
		...

At the time of writing the little-endian option is not available yet on the master branch, but you can already find it on the repo’s dev branch.

There is a secondary issue here: the word-to-byte array casting in sdcard.c silently assumes that passed-in byte arrays are word aligned. My first thought was to modify the sdcard.c code so that it works with arbitrary buffer alignment, but then Dan pointed out that word alignment would still be required if a DMA engine is used for data transfer to/from the SDSPI core. It’s better to just accept that sdcard.c requires word alignment of passed-in buffers, i.e. to document it and to insert assert() statements verifying correct alignment. I did that in the boxlambda branch of the BoxLambda fork of SDSPI.

FatFs Configuration

FatFs is very configurable, so you can trade options for footprint. All configuration options are well-documented and centralized in the ffconf.h file. Relative to the default settings, I modified the following:

  • Enable FF_USE_FIND: filtered directory read functions, f_findfirst() and f_findnext().
  • Enable FF_USE_STRFUNC: string functions, f_gets(), f_putc(), f_puts(), and f_printf().
  • Enable FF_FS_RPATH: support for relative paths.
  • Enable FF_FS_NORTC: I disabled the timestamp feature. I will revisit this when I bring up RTC on BoxLambda.

https://github.com/epsilon537/fatfs/blob/boxlambda/source/ffconf.h

FatFs_Test

FatFs itself does not provide a test suite, but I found a simple test sequence in another project. I used that code as the starting point for a BoxLambda fatfs_test.

With the endianness fix in place, fatfs_test is working fine, both in Verilator and on FPGA.

See instructions below for building and running the fatfs_test project.

Memory Footprint

The fatfs_test code together with the FatFs library and the Picolibc library still fits in BoxLambda’s on-chip RAM, but it is getting tight. On the Arty A7-35T, we have 64KB of on-chip RAM. BoxLambda’s current link map allocates 32KB to code and Read-Only data and 32KB to Read-Write data. The fatfs_test program currently uses 28KB of code and read-only data and 4KB of read-write data.

  Code (KB) RO-Data (KB) RW-Data (KB)
Test App + UART driver 1.8 0.4 3.1
Picolibc + GCC 9.6 1.3 0.1
FatFs 14.1 0.8 0.3
Stack 0 0 0.5
Total 25.5 2.5 4.0

Relevant Files and Directories

  • gw/projects/sdspi_test/rtl/sdspi_test_soc.sv: The SDSPI Test SoC top-level module instantiating the SDSPI core.
  • sw/projects/sdspi_test/sdtest.c: A test program verifying low-level SD Card access using the SDSPI core.
  • sw/projects/fatfs_test/fatfs_test.c: A test program verifying file system level access to the SD Card, using the FatFS library with SDSPI bindings.
  • gw/projects/sdspi_test/: BoxLambda test build based on the SDSPI Test SoC, running the sdtest.c program.
  • gw/projects/fatfs_test/: BoxLambda test build based on the SDSPI Test SoC, running the fatfs_test.c program.
  • sub/sdspi/: BoxLambda git submodule referencing the BoxLambda fork of the SDSPI repo. Note that the selected branch in this repo is boxlambda.
  • sub/fatfs/: BoxLambda git submodule referencing the BoxLambda fork of the FatFS repo. Note that the selected branch in this repo is boxlambda.
  • sw/components/fatfs/: BoxLambda software component to be used by software project builds wishing to use FatFS.
  • gw/components/sdspi/: BoxLambda gateware component to be used by gateware project builds wishing to include the SDSPI core.

Try It Out

Setup

  1. Install the Prerequisites.
  2. Get the BoxLambda repository:
     git clone https://github.com/epsilon537/boxlambda/
 cd boxlambda
  3. Switch to the sd_and_fs tag:
     git checkout sd_and_fs
  4. Set up the repository. This initializes the git submodules used and creates the default build trees:
     ./boxlambda_setup.sh

SDSPI Test on Verilator

  1. Build the sdspi_test project:
     cd build/sim/gw/projects/sdspi_test
 make sdspi_test_sim
  2. Create and format the SD Card image file (or just use the sdcard.img files checked into the test/ subdirectory of the sdspi_test project):
     dd if=/dev/zero of=sdcard.img bs=512 count=131072
 mkfs.fat -F 16 sdcard.img
  3. Execute the generated Verilator model. Pass in the sdcard.img file:
     ./Vmodel -s sdcard.img

  4. You should now see the following messages appear in the terminal window. The traces prefixed with SDSPI: come from the SDSPI co-simulator. The first two lines and the last line come from the test bench. The other lines are printf() statements coming from the test program running on the RISCV processor.

     SD Image File: /home/epsilon/sdcard.img
 SDCARD: NBLOCKS = 131072


 SDSPI testing program

 Initializing the SD-Card
 SDSPI: CMDIDX = 6 -- WE HAVE A COMMAND # 0! [ 40 00 00 00 00 95 ]
 SDSPI: Received a command 0x40 (0) arg 0x0
 ...
 READ: Seek to sector 3
 Write sector 2
 Read sector 3
 SDSPI: CMDIDX = 6 -- WE HAVE A COMMAND #17! [ 51 00 00 00 02 71 ]
 SDSPI: Received a command 0x51 (17) arg 0x2
 Reading from block 00000002 of 00020000
 READ: Seek to sector 2
         Ctrl-RSP: 00000000
 Read sector 2
 Test is complete
 SDSPI Test successful.

SDSPI Test on Arty A7

  1. If you’re running on WSL, check BoxLambda’s documentation On WSL section.

  2. Hook up Digilent’s MicroSD PMOD to port JD and insert an SD card into the card reader.

    Note that this is a destructive test. The contents of the SD card will be destroyed.

  3. Build the sdspi_test project in an Arty A7 build tree (arty-a7-35 or arty-a7-100):
     cd build/arty-a7-35/gw/projects/sdspi_test
 make sdspi_test_impl
  4. Connect a terminal program such as Putty or Teraterm to Arty’s USB serial port. Settings: 115200 8N1.
  5. Download the generated bitstream file to the Arty A7:
     make sdspi_test_load

  6. Verify the test program’s output in the terminal. You should see something like this:

     SDSPI testing program

 Initializing the SD-Card
 CMD0 - the INIT command
 Testing the AUX register
 CMD1 - SEND_OP_COND, send operational conditions (voltage)
 CMD8 - SEND_IF_COND, send interface condition
 ...
 Write sector 2
 Read sector 3
         Ctrl-RSP: 00000000
 Read sector 2
 Test is complete
 SDSPI Test successful.

FatFS Test on Verilator

  1. Build the fatfs_test project:
     cd build/sim/gw/projects/fatfs_test
 make fatfs_test_sim
  2. Create and format the SD Card image file (or just use the sdcard.img files checked into the test/ subdirectory of the fatfs_test project):
     dd if=/dev/zero of=sdcard.img bs=512 count=131072
 mkfs.fat -F 16 sdcard.img
  3. Execute the generated Verilator model. Pass in the sdcard.img file:
     ./Vmodel -s sdcard.img
  4. You should see the following messages in the terminal window. The traces prefixed with SDSPI: come from the SDSPI co-simulator. The first two lines and the last line come from the test bench. The other lines are printf() statements coming from the test program running on the RISCV processor.
     SD Image File: /home/epsilon/sdcard.img
 SDCARD: NBLOCKS = 131072
 Starting fatfs_test...
 SDSPI: CMDIDX = 6 -- WE HAVE A COMMAND # 0! [ 40 00 00 00 00 95 ]
 SDSPI: Received a command 0x40 (0) arg 0x0
 ...
 SDSPI: TOKEN!!
 LEN = 514
 CHECKING CRC: (rx) f8cd =? f8cd (calc)
 FatFS Test Completed Successfully!
 Test passed.
  5. One of the steps taken by the test program is to create a LOG.TXT file with the contents This is a test. We can mount the sdcard.img on Linux and check if that file exists with the expected contents:
     sudo mount -o loop ~/sdcard.img /mnt/sd
 ls -al /mnt/sd
 cat /mnt/sd/LOG.TXT
 This is a test.
 sudo umount /mnt/sd

FatFS Test on Arty A7

  1. If you’re running on WSL, check BoxLambda’s documentation On WSL section.

  2. Hook up Digilent’s MicroSD PMOD to port JD and insert a FAT-formatted SD card into the card reader.

    Note that this is a destructive test. The contents of the SD card will be destroyed.

  3. Build the fatfs_test project in an Arty A7 build tree (arty-a7-35 or arty-a7-100):
     cd build/arty-a7-35/gw/projects/fatfs_test
 make fatfs_test_impl
  4. Connect a terminal program such as Putty or Teraterm to Arty’s USB serial port. Settings: 115200 8N1.
  5. Download the generated bitstream file to the Arty A7:
     make fatfs_test_load
  6. Verify the test program’s output in the terminal. You should see something like this:
     Starting fatfs_test...
 Mounting...
 CID: 534d5402:47323341:7d604971:3168018d
 Opendir...
 Creating file...
 Writing...
 Closing file...
 Re-opening file for reading...
 Reading...
 Closing file...
 Comparing...
 f_printf test...
 FatFS Test Completed Successfully!
  7. One of the steps taken by the test program is to create a LOG.TXT file with the contents This is a test. Eject the SD card, insert it into your PC, and verify that LOG.TXT exists with the expected contents.

Other Changes

I updated the Picolibc installation for BoxLambda to version 1.8.1. This made it easier to use assert() statements.

Conclusion

Bringing up an SD Card controller and a file system turned out to be straightforward thanks to Dan Gisselquist’s SDSPI repo. The repo not only contains an SDSPI core, but also a test bench with a co-simulator, excellent documentation, and low-level driver code to hook into FatFs. To top it off, FatFs itself expects nothing more than a minimal C environment, so it compiles out of the box in virtually any environment.

Next up is Sound. I suspect that nut won’t be so easy to crack.
